The Uni 2.35 Plus Maxi from Herrmann AG is a high-performance in-ground, two-piston hydraulic vehicle lift designed for workshops handling a broad range of vehicles, particularly those with longer wheelbases. It offers a lifting capacity of up to 3500kg and features extended, adjustable aluminium sliding platforms that can be positioned both longitudinally and transversely, providing maximum flexibility and support coverage.
With a low drive-over height of just 60mm and an effective lifting height of around 2.0 metres, it ensures easy access and excellent working clearance. Built with durable hard-chromed pistons, a quiet oil-submerged motor, and advanced electronic controls with safety alerts and emergency lowering, the Maxi version combines robust construction with smooth, reliable operation and lifting times of approximately 35 seconds.
| Technical Data | |
| Capacity: | 3500kg |
| Piston Distance: | 1500mm |
| Lifting Height: | 2023mm |
| Drive Over Height: | 60mm |
| Piston Diameter: | 123mm |
| Installation Depth: | 2408mm |
| Motor Output: | 3,0kW |
| Power Connection: | 400/16 V/A |
| Cable Length To Control Box: | 11m |
| Lifting/Lowering Time: | ≈ 35 sec |
| Vehicle Type: |   |
| Download Surface Mounted Version Brochure | |
| Download Flush Mounted Version Brochure | |

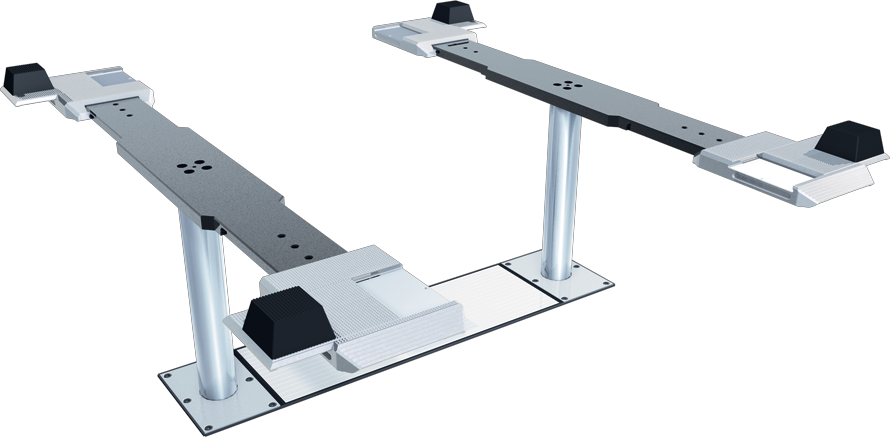

Surface Mounted

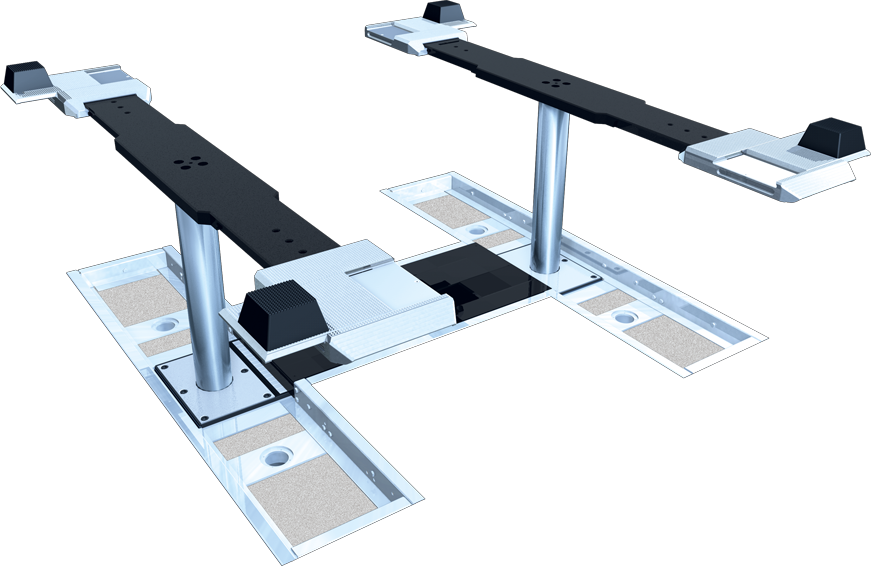

Flush Mounted
