The Uni 2.35 Plus Midi is a versatile in-ground, two-piston hydraulic vehicle lift designed to balance compact installation with strong workshop performance. It offers a lifting capacity of up to 3,500 kg and a piston distance of 1500 mm, providing stable support for a wide range of passenger cars and light commercial vehicles. With a low drive-over height of just 60mm and an effective lifting height of approximately 2023mm, it enables easy vehicle access while maintaining excellent working clearance.
The lift features adjustable aluminium sliding plates with a non-slip surface, a durable powder-coated steel flat carrier, and a reliable 3.0kW motor, delivering smooth lifting and lowering in around 35 seconds. Built for efficiency and durability, it also supports flexible installation options and consistent performance in demanding workshop environments.
| Technical Data | |
| Capacity: | 3500kg |
| Piston Distance: | 1500mm |
| Lifting Height: | 2023mm |
| Drive Over Height: | 60mm |
| Piston Diameter: | 123mm |
| Installation Depth: | 2408mm |
| Motor Output: | 3,0kW |
| Power Connection: | 400/16 V/A |
| Cable Length To Control Box: | 11m |
| Lifting/Lowering Time: | ≈ 35 sec |
| Vehicle Type: |   |
| Download Surface Mounted Version Brochure | |
| Download Flush Mounted Version Brochure | |

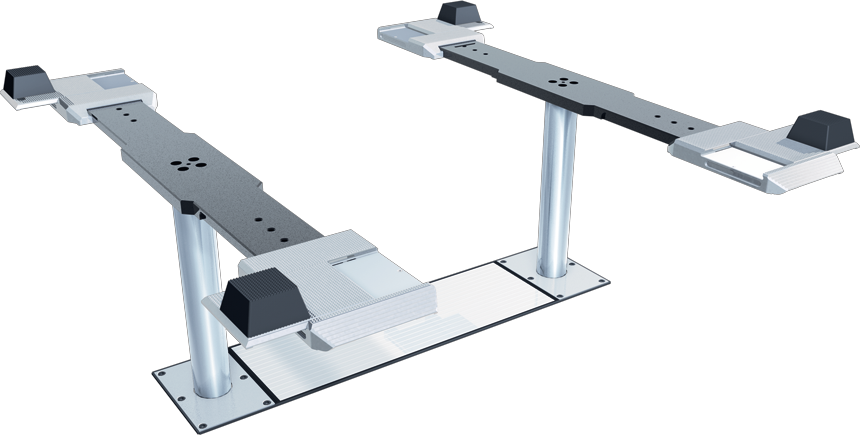

Surface Mounted

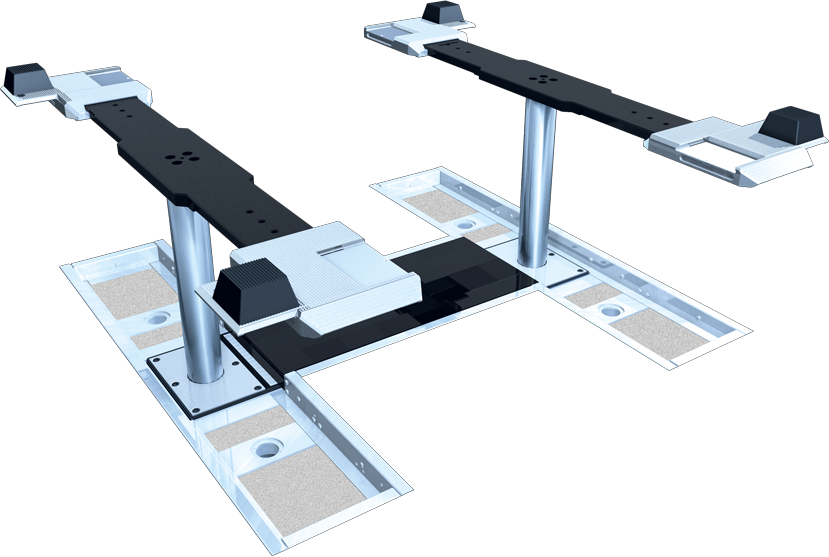

Flush Mounted
