The AluTrack 2.35 is a modern in-ground, two-piston hydraulic platform lift designed for precise wheel alignment and general workshop servicing of passenger cars. It offers a lifting capacity of up to 3500kg and features a flush-mounted aluminium platform system with a length of around 4400mm, providing a stable and versatile working surface. With a low drive-over height of approximately 180 mm and an effective lifting height of nearly 2.0 metres, it ensures easy vehicle access and efficient ergonomics.
The system uses a reliable 3.0kW hydraulic unit, delivering smooth lifting and lowering cycles in about 35 seconds, and is available in multiple configurations, including alignment-focused variants with sliding plates and optional accessories for enhanced workshop functionality.
| Technical Data | |
| Capacity: | 3500kg |
| Piston Distance: | 1500mm |
| Lifting Height: | 2008mm |
| Platform Length: | 4400mm |
| Platform Height: | 180mm |
| Piston Diameter: | 123mm |
| Installation Depth: | 2443mm |
| Motor Output: | 3,0kW |
| Power Connection: | 400/16 V/A |
| Cable Length To Control Box: | 11m |
| Lifting/Lowering Time: | ≈ 35 sec |
| Vehicle Type: |    |
| Download Surface Mounted Version Brochure | |
| Download Flush Mounted H-Frame Version Brochure | |
| Download Flush Mounted Rectangle Version Brochure | |

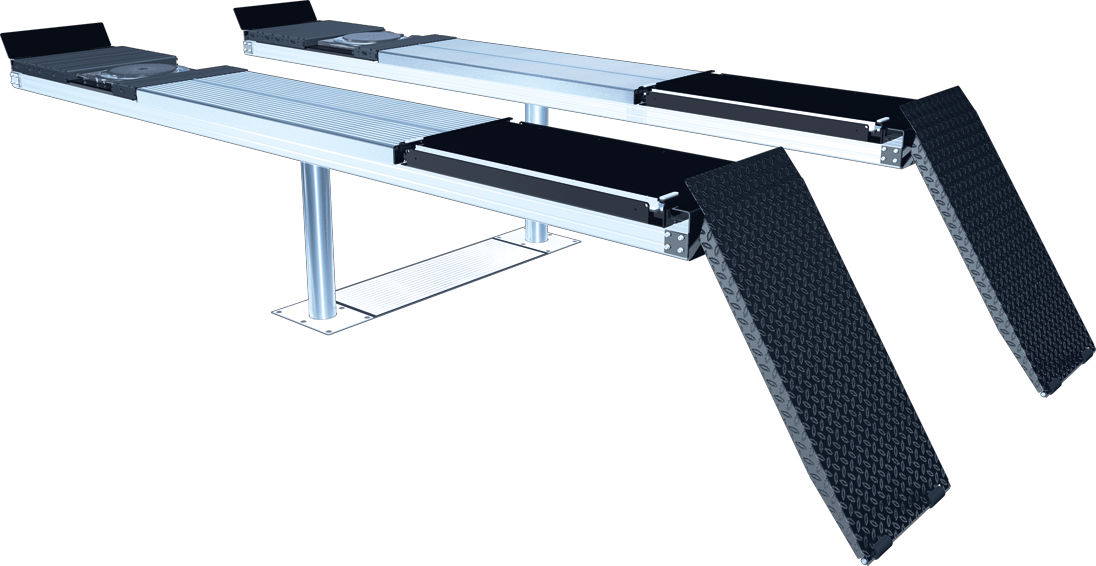

Surface Mounted

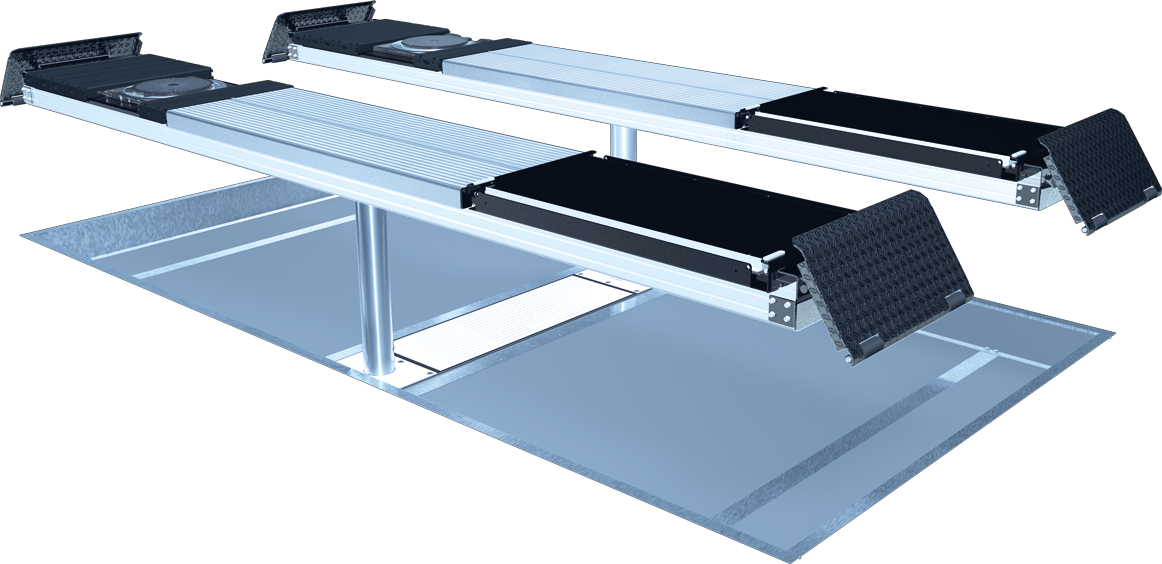

Flush Mounted H-Frame
Flush Mounted Rectangle Frame
