The AluTrack 4.65 is a heavy-duty in-ground, four-piston hydraulic platform lift designed for high-demand workshop applications such as wheel alignment and servicing of larger vehicles. With a lifting capacity of up to 6500kg, it provides exceptional strength and stability, supported by a robust electrohydraulic system and a wide aluminium platform of approximately 5500mm in length.
Its four-cylinder design ensures even load distribution and smooth, reliable operation, achieving an effective lifting height of around 2.0 metres in roughly 35 seconds. Built for durability and flexibility, the lift is available in flush-mounted configurations and can be equipped with alignment features such as turntables and sliding plates, making it a versatile solution for professional automotive environments.
| Technical Data | |
| Platform Capacity: | 6500kg |
| Piston Distance: | 1550mm |
| Lifting Height: | 2008mm |
| Platform Length: | 5500mm |
| Platform Height: | 180mm |
| Installation Depth: | 2443mm |
| Motor Output: | 2 x 3,0kW |
| Power Connection: | 400/16 V/A |
| Cable Length To Control Box: | 11m |
| Lifting/Lowering Time: | ≈ 35 sec |
| Vehicle Type: |
|
| Download Surface Mounted Version Brochure | |
| Download Flush Mounted H-Frame Version Brochure | |
| Download Flush Mounted Rectangle Version Brochure | |

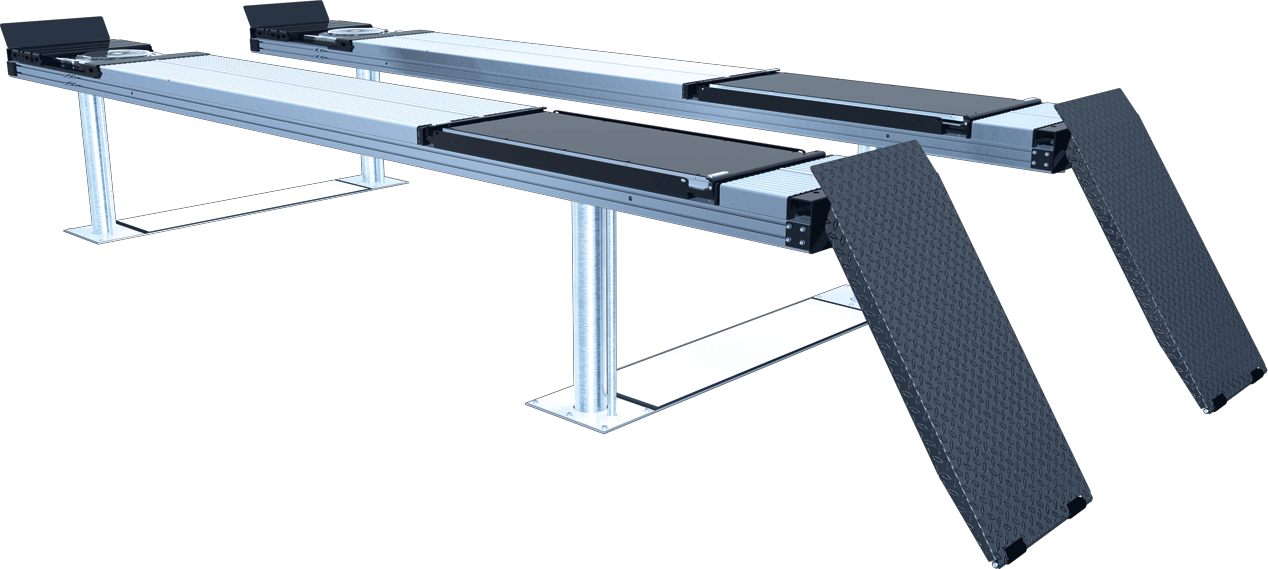

Surface Mounted

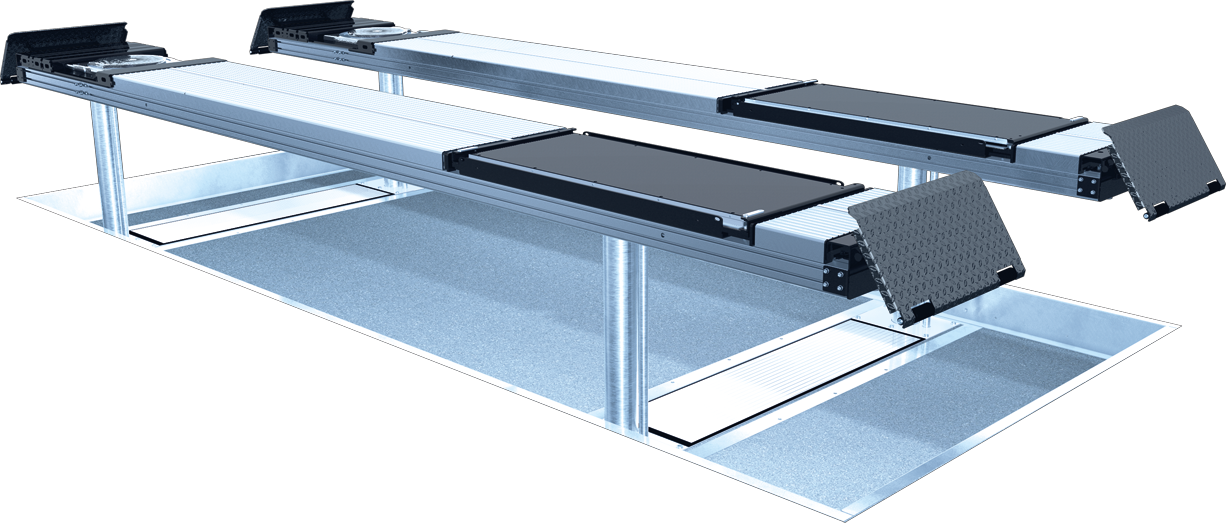

Flush Mounted H-Frame

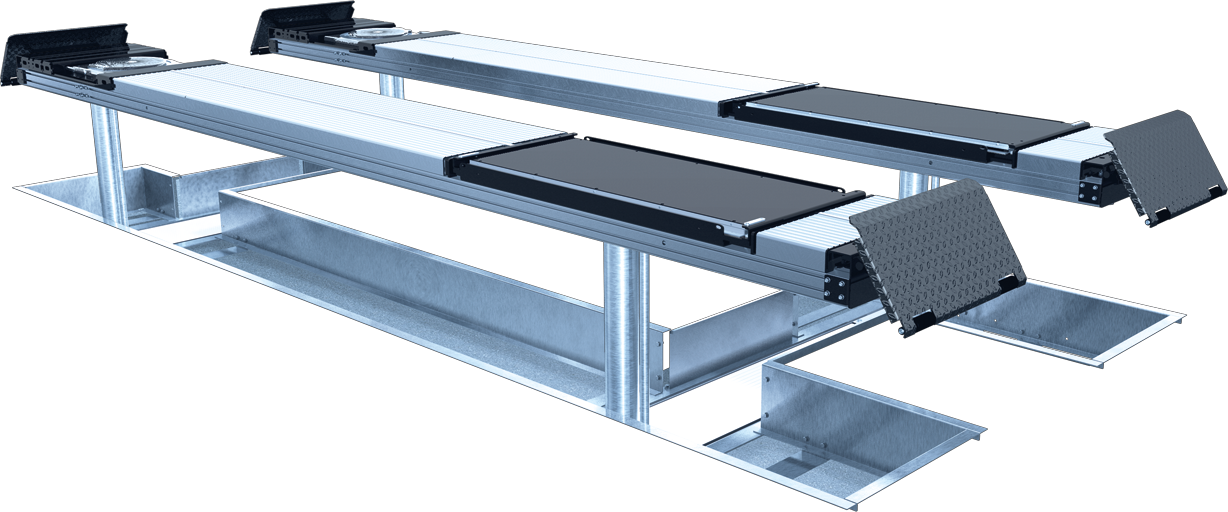

Flush Mounted Rectangle Frame
