The Alu Track 2.35 Duplo Swing is engineered for precision, durability, and seamless workflow integration in professional automotive environments. With a 3500kg lifting capacity, 4400mm platform length, and an efficient ≈35‑second lifting/lowering cycle, it delivers the speed and stability technicians rely on. Its 180mm platform height, 90 mm wheel‑free move‑in height, and robust 2008mm platform raise ensure excellent accessibility for a wide range of vehicles. The system’s 1500mm piston distance, 123mm piston diameter, and 3.0kW motor output reflect a design focused on long‑term reliability and smooth operation.
A comprehensive accessory lineup—including drive‑on ramps, sliding plates, LED illumination, axle lifters, wheel‑alignment supports, and multiple stacking adapter configurations—allows workshops to tailor the lift to their exact needs.
| Technical Data | |
| Platform Capacity: | 3500kg |
| Wheel Free Lift Capacity: | 3500kg |
| Piston Distance: | 1500mm |
| Platform Height: | 2008mm |
| Wheel Free Lift: | 2000mm |
| Platform Length: | 4400mm |
| Platform Height: | 180mm |
| Piston Diameter: | 123mm |
| Installation Depth: | 2443mm |
| Motor Output: | 3,0kW |
| Power Connection: | 400/16 V/A |
| Cable Length To Control Box: | 11m |
| Lifting/Lowering Time: | ≈ 35 sec |
| Vehicle Type: |    |
| Download Surface Mounted Version Brochure | |
| Download Flush Mounted H-Frame Version Brochure | |
| Download Flush Mounted Rectangle Version Brochure | |

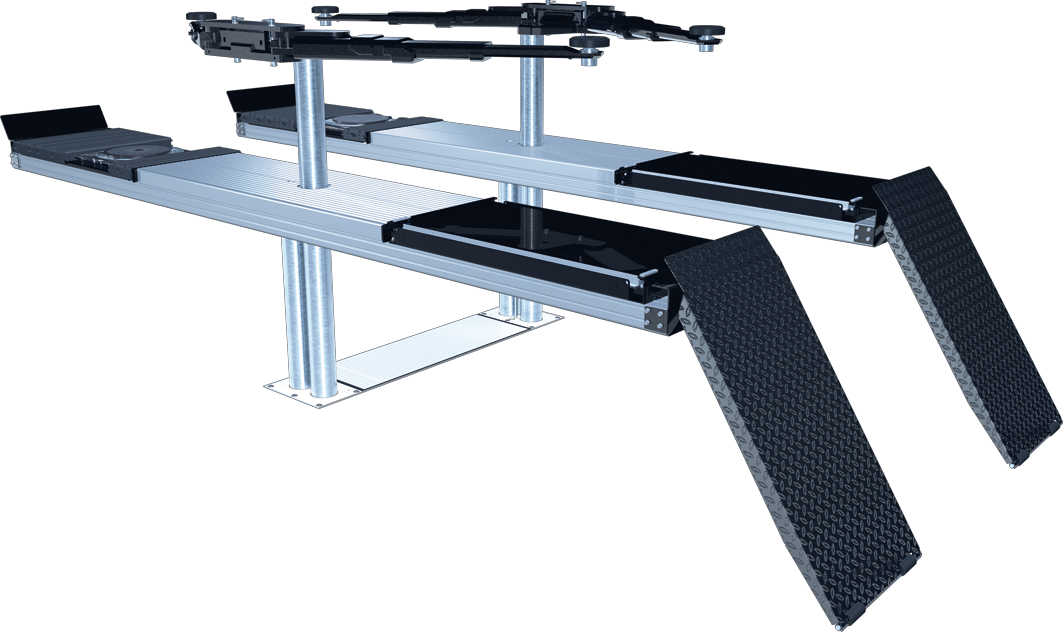

Surface Mounted

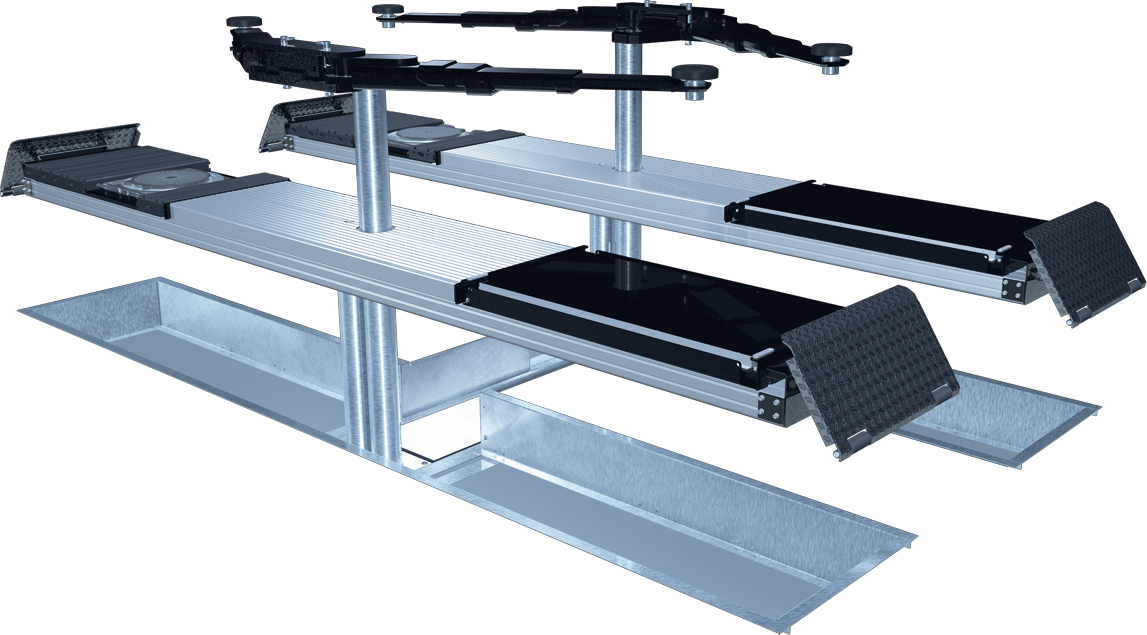

Flush Mounted H-Frame

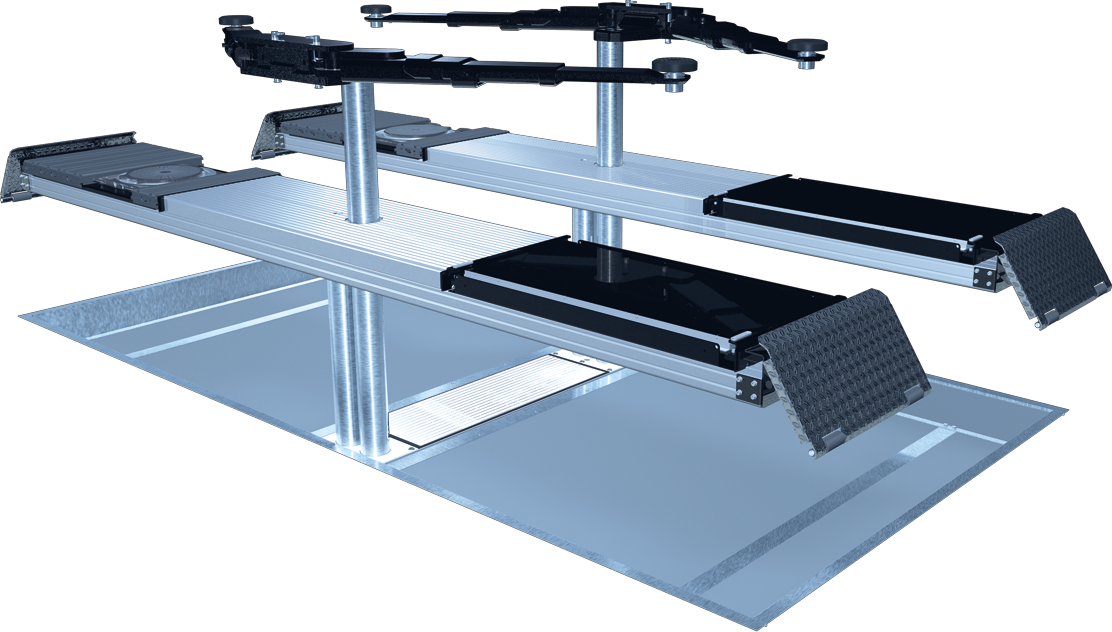

Flush Mounted Rectangle Frame
