The Alu Track 2.50 Duplo Swing is a heavy‑duty, precision‑engineered lifting system designed to meet the demands of modern professional workshops. With a powerful 5000kg platform lifting capacity and matching 5000kg wheel‑free lifting capacity, it delivers exceptional strength and stability for a wide range of vehicles. Its extended 4800mm platform length, 1995mm effective raise height, and low 180mm platform height ensure excellent accessibility and ergonomic operation. The lift’s 1500mm piston distance, 123mm piston diameter, and 3.0kW motor output contribute to smooth, reliable performance, while the rapid ≈35‑second lifting/lowering cycle keeps workflow efficient.
A comprehensive selection of accessories—including drive‑on ramps, LED illumination, sliding rails, axle lifters, compressed‑air supply options, and multiple stacking adapter configurations—allows workshops to tailor the system to their exact operational needs.
| Technical Data | |
| Platform Capacity: | 3500kg |
| Wheel Free Lift Capacity: | 3500kg |
| Piston Distance: | 1500mm |
| Platform Height: | 2008mm |
| Wheel Free Lift: | 2000mm |
| Platform Length: | 4400mm |
| Platform Height: | 180mm |
| Piston Diameter: | 123mm |
| Installation Depth: | 2443mm |
| Motor Output: | 3,0kW |
| Power Connection: | 400/16 V/A |
| Cable Length To Control Box: | 11m |
| Lifting/Lowering Time: | ≈ 35 sec |
| Vehicle Type: |
|
| Download Surface Mounted Version Brochure | |
| Download Flush Mounted H-Frame Version Brochure | |
| Download Flush Mounted Rectangle Version Brochure | |

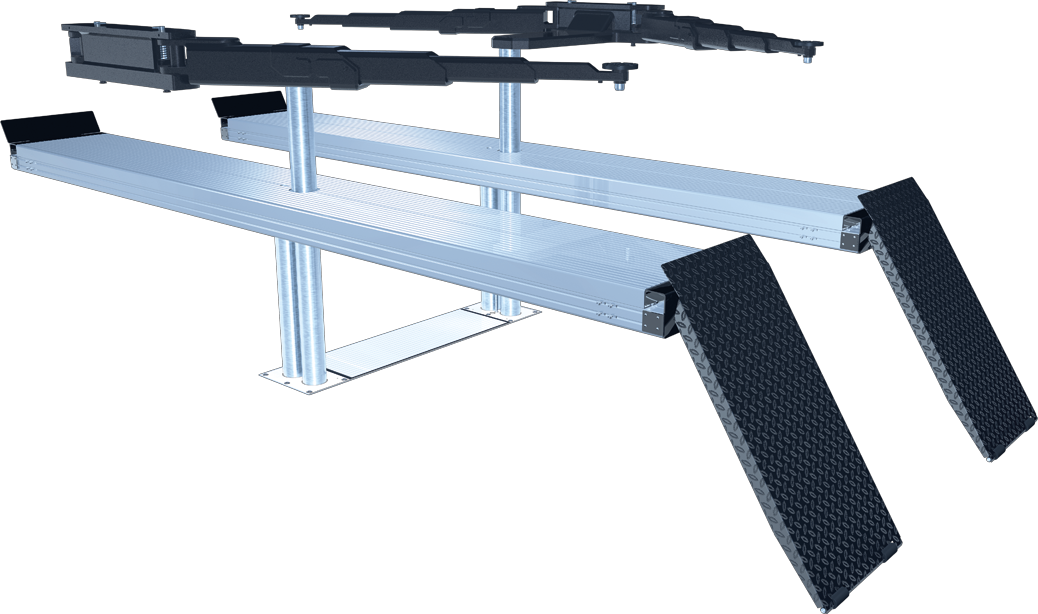

Surface Mounted

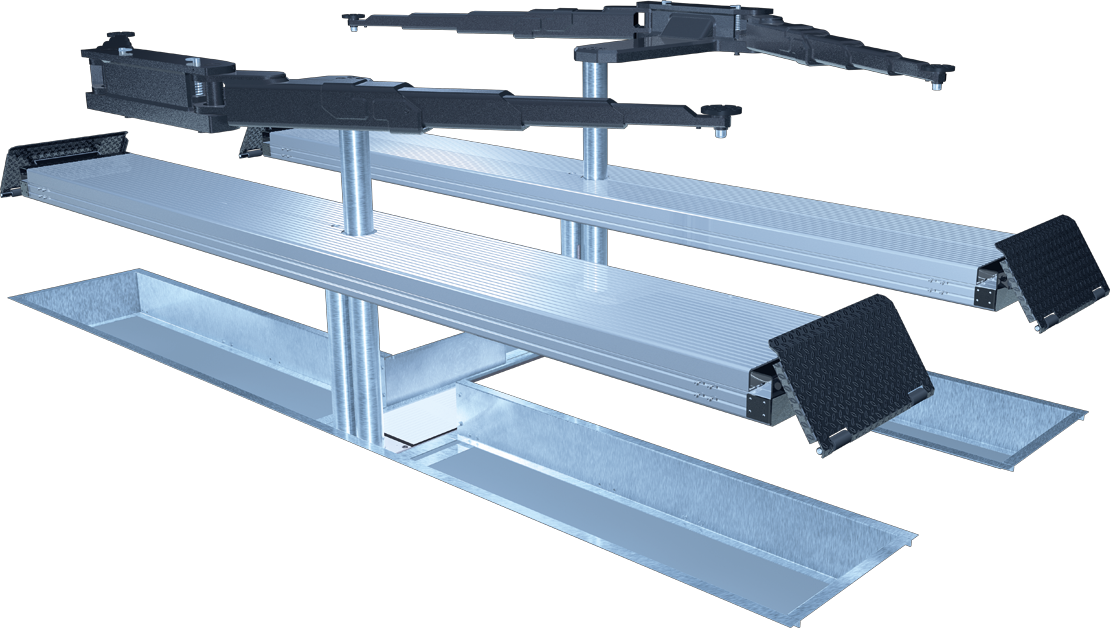

Flush Mounted H-Frame

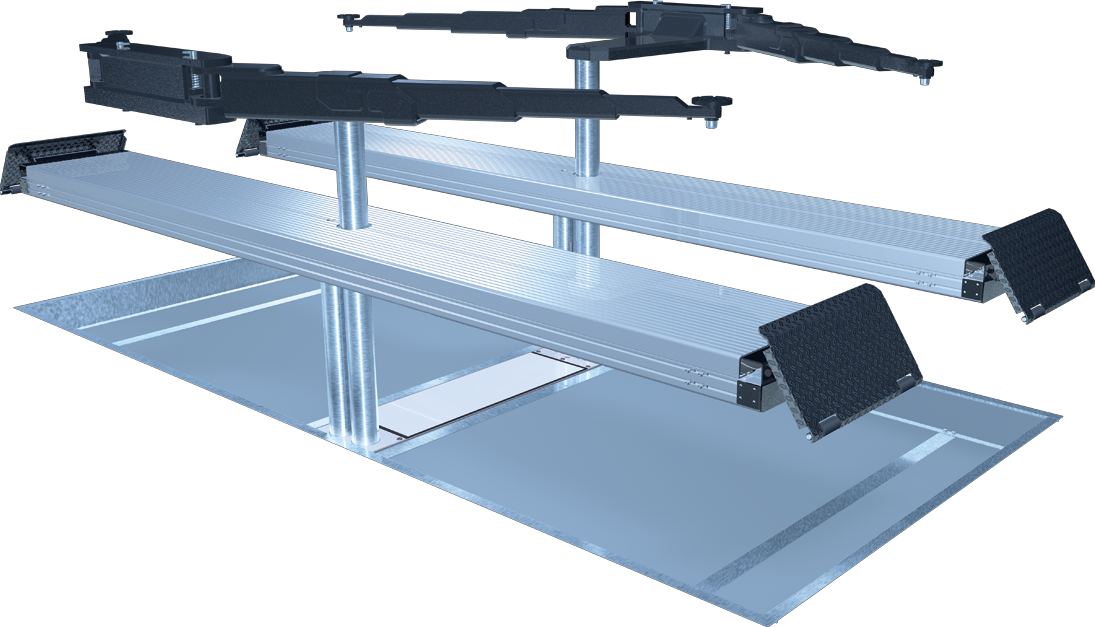

Flush Mounted Rectangle Frame
