The Alu Track 2.50 Duplo Uni Plus is a high‑capacity, precision‑engineered lifting solution built for demanding workshop environments. With an impressive 5000kg platform lifting capacity and 3,500 kg wheel‑free lifting capacity, it delivers the strength and stability required for a wide range of vehicles. Its extended 4800mm platform length, 2019 mm effective raise height, and low 180mm platform height ensure excellent accessibility and ergonomic operation. The system’s 1500mm piston distance, 123mm piston diameter, and 3.0 kW motor output reflect a design optimized for durability and smooth, consistent performance.
A rapid ≈35‑second lifting/lowering time keeps workflow efficient, while a broad selection of accessories—such as drive‑on ramps, LED illumination, sliding rails, axle lifters, compressed‑air supply options, and multiple rubber pad configurations—allows workshops to tailor the lift to their exact needs.
| Technical Data | |
| Platform Capacity: | 3500kg |
| Wheel Free Lift Capacity: | 3500kg |
| Piston Distance: | 1500mm |
| Platform Height: | 2008mm |
| Wheel Free Lift: | 2000mm |
| Platform Length: | 4400mm |
| Platform Height: | 180mm |
| Piston Diameter: | 123mm |
| Installation Depth: | 2443mm |
| Motor Output: | 3,0kW |
| Power Connection: | 400/16 V/A |
| Cable Length To Control Box: | 11m |
| Lifting/Lowering Time: | ≈ 35 sec |
| Vehicle Type: |   |
| Download Surface Mounted Version Brochure | |
| Download Flush Mounted H-Frame Version Brochure | |
| Download Flush Mounted Rectangle Version Brochure | |

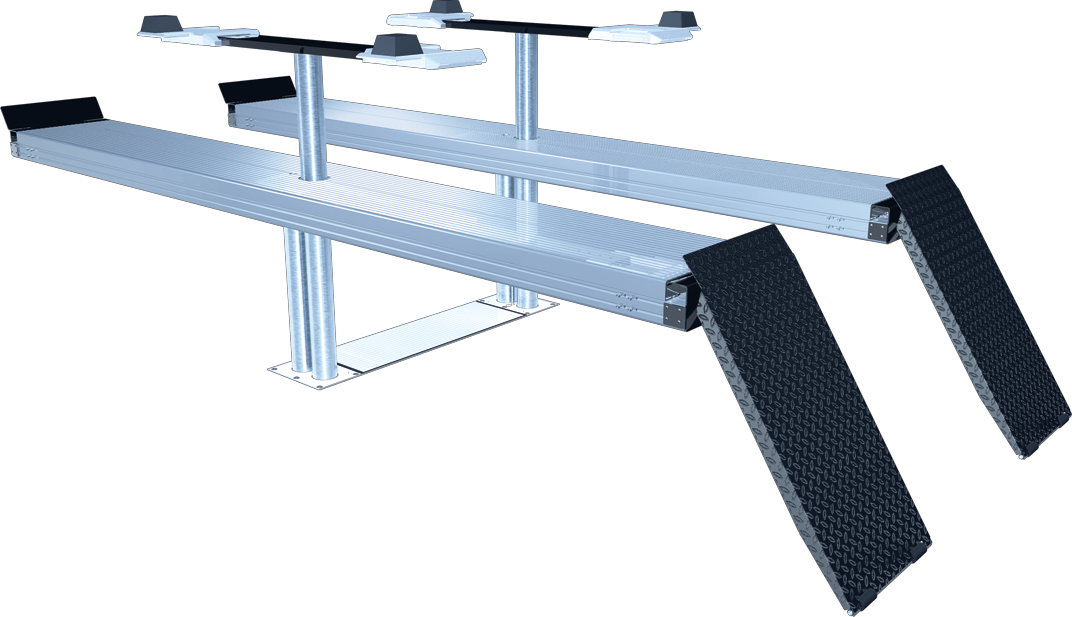

Surface Mounted

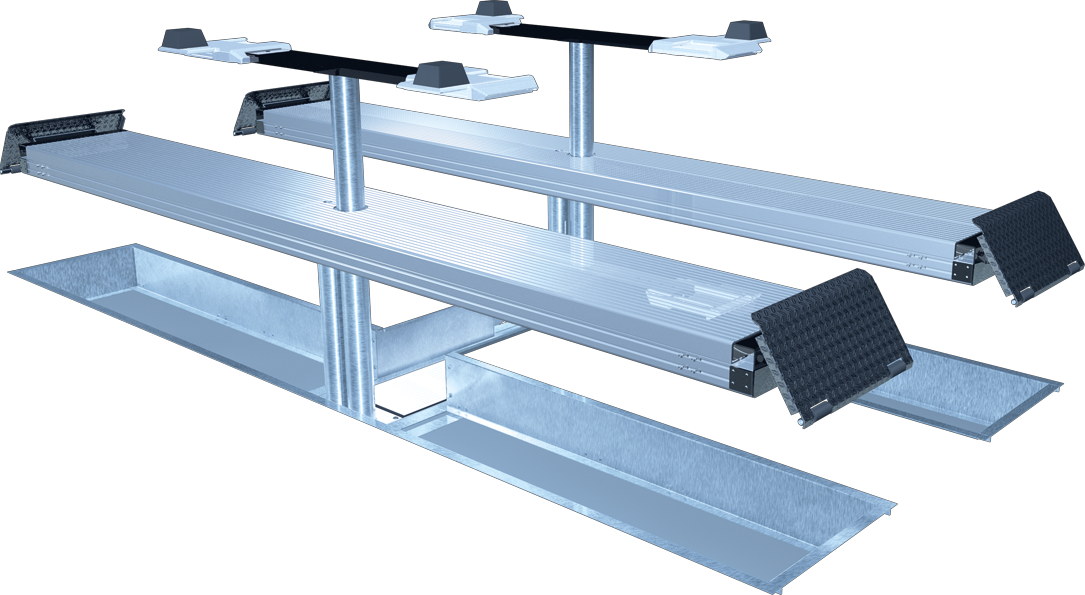

Flush Mounted H-Frame

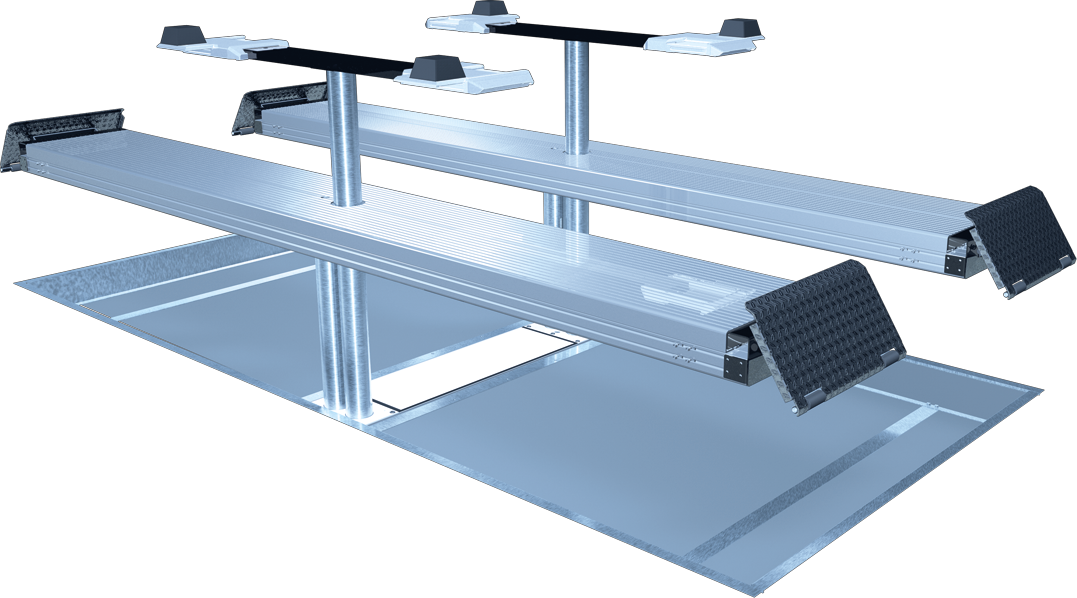

Flush Mounted Rectangle Frame
