The Duplex 4.65 is a high-capacity in-ground, two-piston hydraulic vehicle lift designed for demanding workshop environments where strength, stability, and flexibility are essential. With a lifting capacity of up to 6500kg, it is suitable for a wide range of vehicles including larger vans, light commercial vehicles, and heavy passenger cars. The system features three telescopic, adjustable swivel arms that allow precise positioning and full accessibility around the vehicle, ensuring efficient servicing and repair work.
Built with a robust surround-frame construction and hard-chromed hydraulic components, it delivers smooth and reliable operation, reaching an effective lifting height of around 2100mm with a drive-over height of approximately 120mm. Powered by a 3.0 kW hydraulic unit and supplied in a pre-assembled installation cassette, the Duplex 4.65 combines durability, safety, and efficient installation for professional workshop use.
| Technical Data | |
| Capacity: | 5500kg |
| Piston Distance: | 2530mm |
| Lifting Height: | 2074mm |
| Drive Over Height: | 120mm |
| Clearance: | 2370mm |
| Piston Diameter: | 123mm |
| Installation Depth: | 2408mm |
| Motor Output: | 3,0kW |
| Power Connection: | 400/16 V/A |
| Cable Length To Control Box: | 11m |
| Lifting/Lowering Time: | ≈ 35 sec |
| Vehicle Type: |
|
| Download Surface Mounted Version Brochure | |
| Download Flush Mounted Version Brochure | |

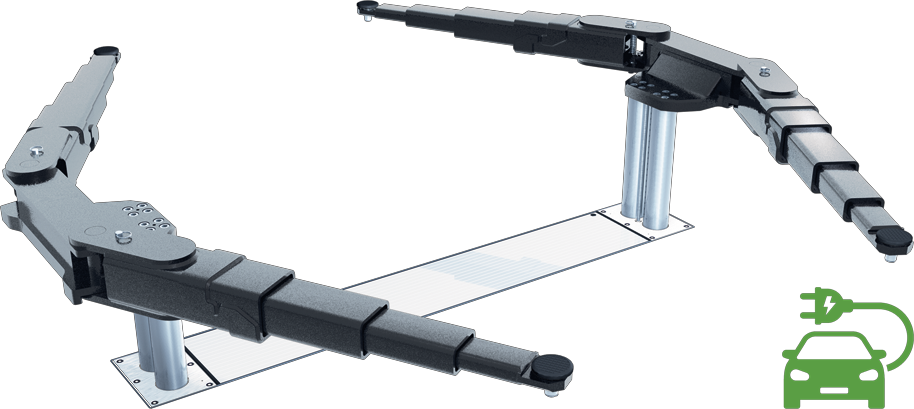

Surface Mounted

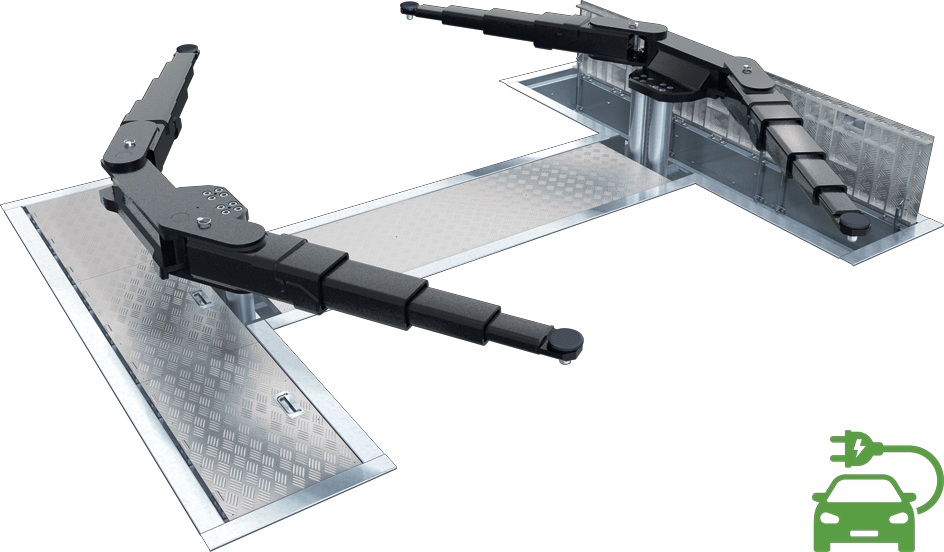

Flush Mounted
