The Multiarm 2.40 is a heavy-duty in-ground, two-piston hydraulic vehicle lift designed for maximum flexibility and accessibility in modern workshops. With a lifting capacity of up to 4000kg and a wide piston distance of 2530mm, it is particularly well suited to larger vehicles and electric vehicles requiring battery access. The lift features multi-jointed, telescopic swivel arms that allow precise positioning and full 360° access around the vehicle, ensuring unobstructed working conditions and easy door opening.
Offering a low drive-over height of around 95mm and an effective lifting height of approximately 2033mm, it combines excellent clearance with ease of use. Powered by a reliable 3.0 kW motor and delivering lifting cycles in about 35 seconds, the system is supplied pre-assembled in an installation cassette, providing durable construction, efficient installation, and consistent performance in demanding workshop environments
| Technical Data | |
| Capacity: | 4000kg |
| Piston Distance: | 2530mm |
| Lifting Height: | 2033mm |
| Drive Over Height: | 95mm |
| Piston Diameter: | 123mm |
| Installation Depth: | 2408mm |
| Motor Output: | 3,0kW |
| Power Connection: | 400/16 V/A |
| Cable Length To Control Box: | 11m |
| Lifting/Lowering Time: | ≈ 35 sec |
| Vehicle Type: |
|
| Download Surface Mounted Version Brochure | |
| Download Flush Mounted Version Brochure | |

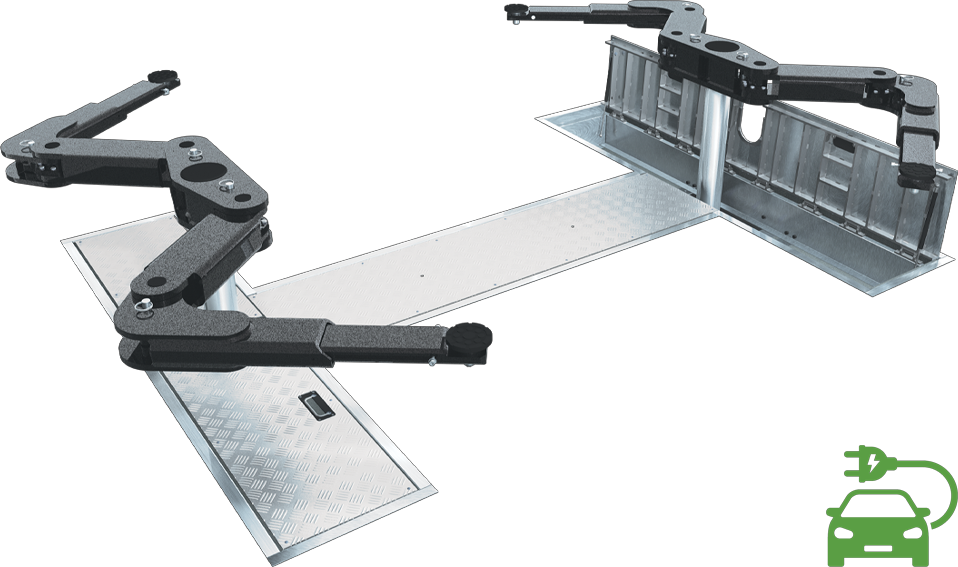

Surface Mounted
Flush Mounted
