The Swingarm 2.35-2530 is a high-capacity in-ground, two-piston hydraulic vehicle lift designed for workshops requiring increased working width and flexibility. With a lifting capacity of up to 3500kg and an extended piston distance of 2530mm, it provides enhanced stability and improved access for larger vehicles. The lift features telescopic, asymmetrical swivel arms with a wide adjustment range, allowing precise positioning across various vehicle types while maintaining full 360° accessibility around the vehicle.
With a low drive-over height of around 90–95mm and an effective lifting height of approximately 2048mm, it offers excellent clearance and ease of use. Powered by a reliable 3.0kW motor and delivering lifting cycles in roughly 35 seconds, the system combines durable construction, efficient installation via a pre-assembled cassette, and consistent performance in demanding workshop environments.
| Technical Data | |
| Capacity: | 3500kg |
| Piston Distance: | 2530mm |
| Lifting Height: | 2048mm |
| Drive Over Height: | 95mm |
| Piston Diameter: | 123mm |
| Installation Depth: | 2408mm |
| Motor Output: | 3,0kW |
| Power Connection: | 400/16 V/A |
| Cable Length To Control Box: | 11m |
| Lifting/Lowering Time: | ≈ 35 sec |
| Vehicle Type: |    |
| Download Surface Mounted Version Brochure | |
| Download Flush Mounted Version Brochure | |

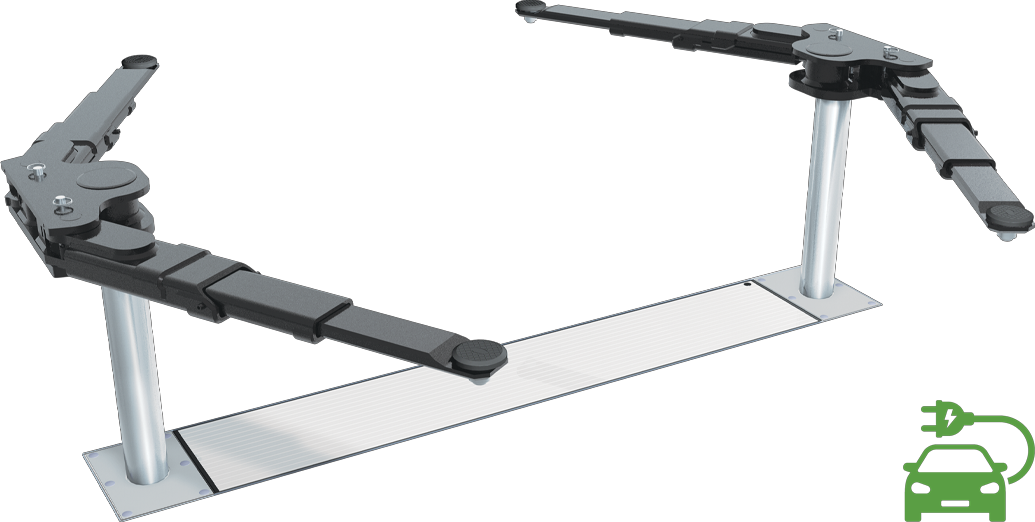

Surface Mounted

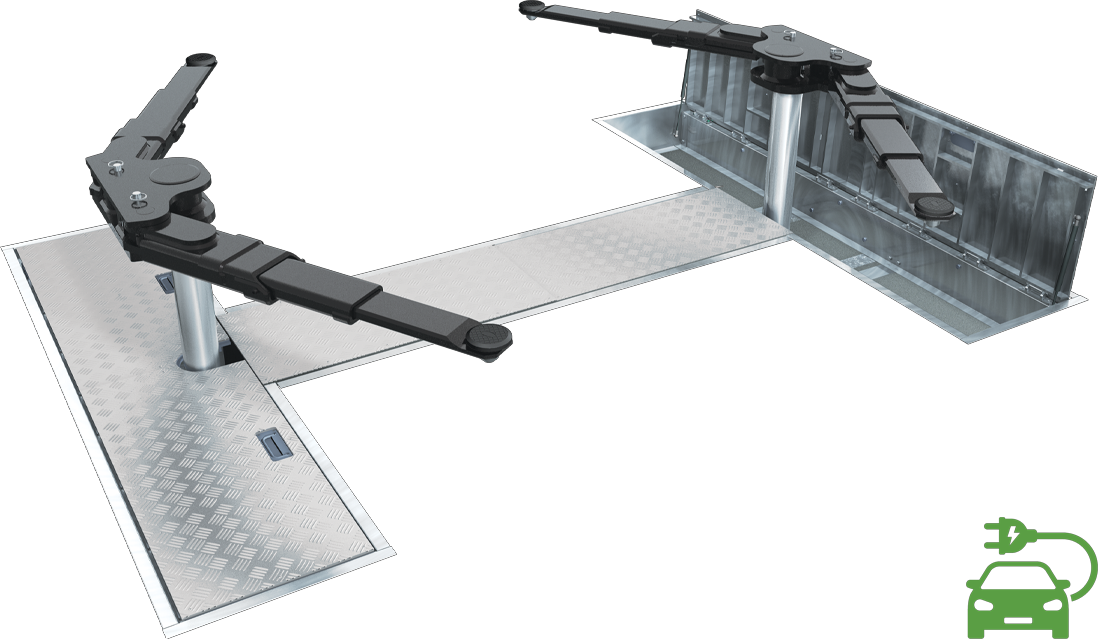

Flush Mounted
