The Swingarm 2.35 is a robust in-ground, two-piston hydraulic vehicle lift designed for maximum accessibility and flexibility in professional workshops. With a lifting capacity of up to 3500kg and a piston distance of 2285mm, it uses asymmetrical, telescopic swivel arms that allow precise positioning for a wide range of vehicle types, making it particularly suitable for service and repair tasks requiring open access to the vehicle underside.
The lift features a low drive-over height of approximately 95mm, durable powder-coated components, and a reliable 3.0kW motor, delivering smooth lifting and lowering cycles in around 35 seconds. Supplied pre-assembled in an installation cassette, it combines efficient setup with dependable performance and ergonomic operation in demanding workshop environments.
| Technical Data | |
| Capacity: | 3500kg |
| Piston Distance: | 2285mm |
| Lifting Height: | 2048mm |
| Drive Over Height: | 95mm |
| Piston Diameter: | 123mm |
| Installation Depth: | 2408mm |
| Motor Output: | 3,0kW |
| Power Connection: | 400/16 V/A |
| Cable Length To Control Box: | 11m |
| Lifting/Lowering Time: | ≈ 35 sec |
| Vehicle Type: |    |
| Download Surface Mounted Version Brochure | |
| Download Flush Mounted Version Brochure | |

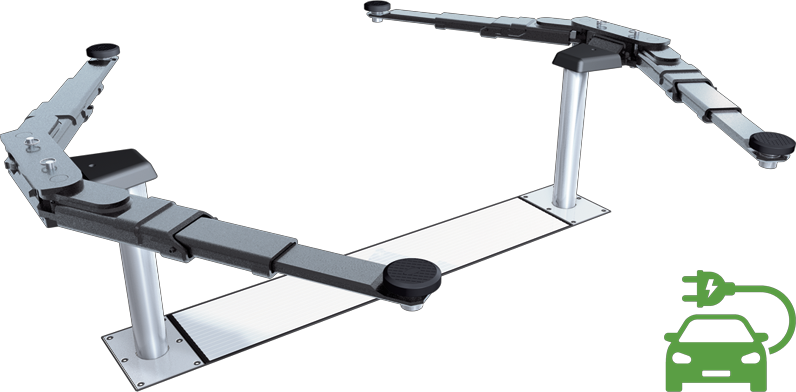

Surface Mounted

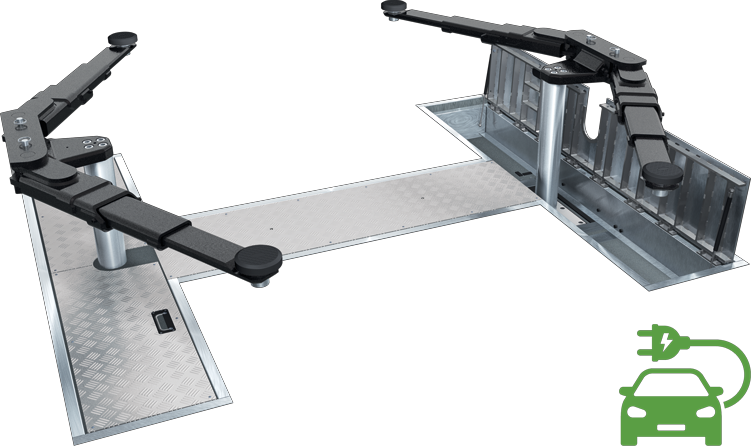

Flush Mounted
