The Swingarm 2.50 is a heavy-duty in-ground, two-piston hydraulic vehicle lift designed for workshops handling larger and heavier vehicles. With a lifting capacity of up to 5000kg and a piston distance of 2285mm, it provides excellent stability and support for a wide range of vehicle types, including vans and heavier passenger vehicles. The lift features robust, telescopic swivel arms mounted within a durable surround frame, allowing precise positioning and full accessibility around the vehicle for efficient servicing.
With a drive-over height of approximately 120mm and a reliable 3.0kW motor, it delivers smooth lifting and lowering cycles in around 35 seconds, while its pre-assembled installation cassette ensures efficient setup and long-term durability in demanding workshop environments.
| Technical Data | |
| Capacity: | 5000kg |
| Piston Distance: | 2285mm |
| Lifting Height: | 2037mm |
| Drive Over Height: | 120mm |
| Clearance: | 2145mm |
| Piston Diameter: | 123mm |
| Installation Depth: | 2408mm |
| Motor Output: | 3,0kW |
| Power Connection: | 400/16 V/A |
| Cable Length To Control Box: | 11m |
| Lifting/Lowering Time: | ≈ 35 sec |
| Vehicle Type: |   |
| Download Surface Mounted Version Brochure | |
| Download Flush Mounted Version Brochure | |

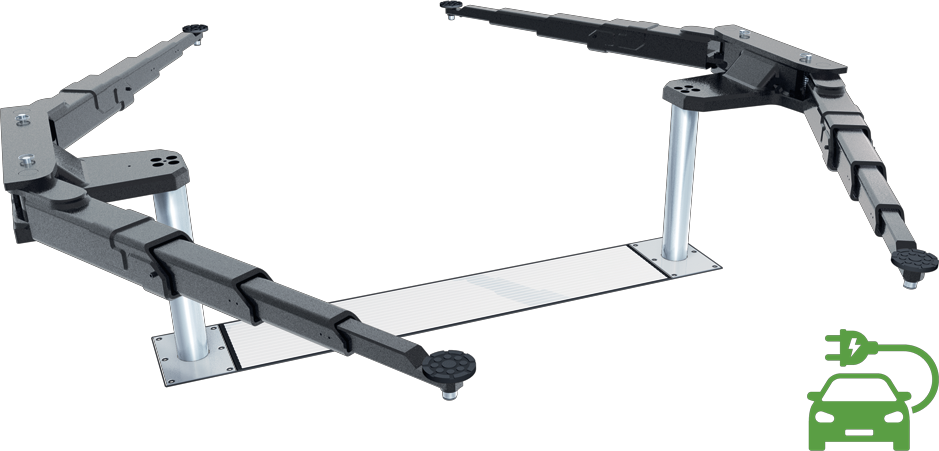

Surface Mounted

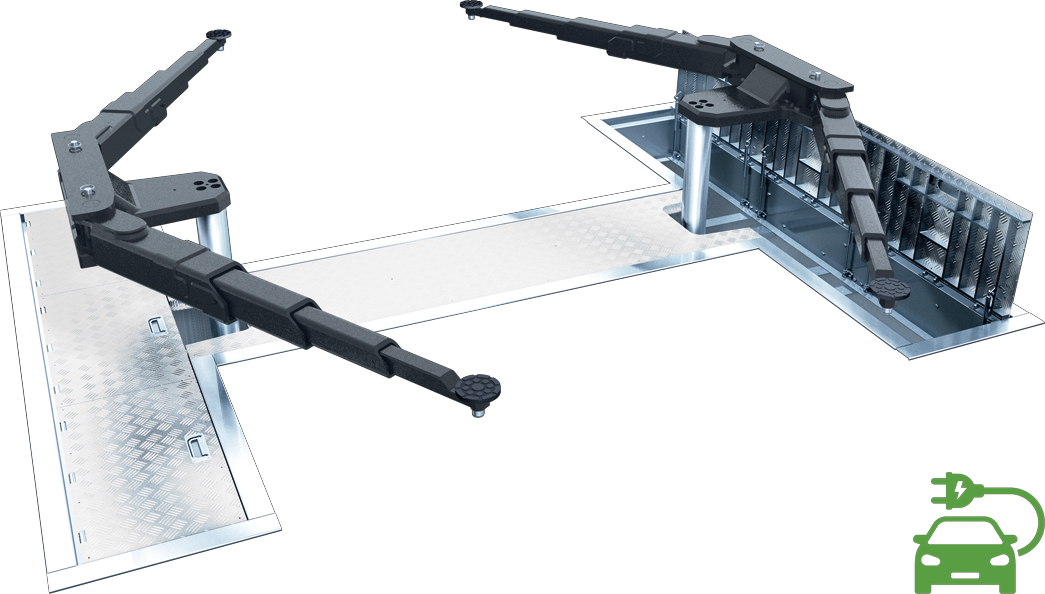

Flush Mounted
