The AluTrack 2.50 is a high-performance in-ground, two-piston hydraulic vehicle lift designed for versatile workshop applications, particularly wheel alignment and general servicing of passenger cars and light commercial vehicles. It offers a lifting capacity of up to 5000kg and features a flush-mounted aluminium platform system with a platform length of approximately 4,800 mm, providing a stable and durable working surface.
With an effective lifting height of just over 2.0 metres and a drive-over height of around 180mm, it ensures smooth vehicle access and efficient ergonomics. Powered by a 3.0kW hydraulic unit, the system delivers reliable lifting and lowering cycles in about 35 seconds and is available in multiple configurations, including Duplo variants with integrated secondary lifts for enhanced flexibility in workshop operations.
| Technical Data | |
| Capacity: | 5000kg |
| Piston Distance: | 1500mm |
| Lifting Height: | 2019mm |
| Platform Length: | 4800mm |
| Platform Height: | 180mm |
| Piston Diameter: | 123mm |
| Installation Depth: | 2443mm |
| Motor Output: | 3,0kW |
| Power Connection: | 400/16 V/A |
| Cable Length To Control Box: | 11m |
| Lifting/Lowering Time: | ≈ 35 sec |
| Vehicle Type: |
|
| Download Surface Mounted Version Brochure | |
| Download Flush Mounted H-Frame Version Brochure | |
| Download Flush Mounted Rectangle Version Brochure | |

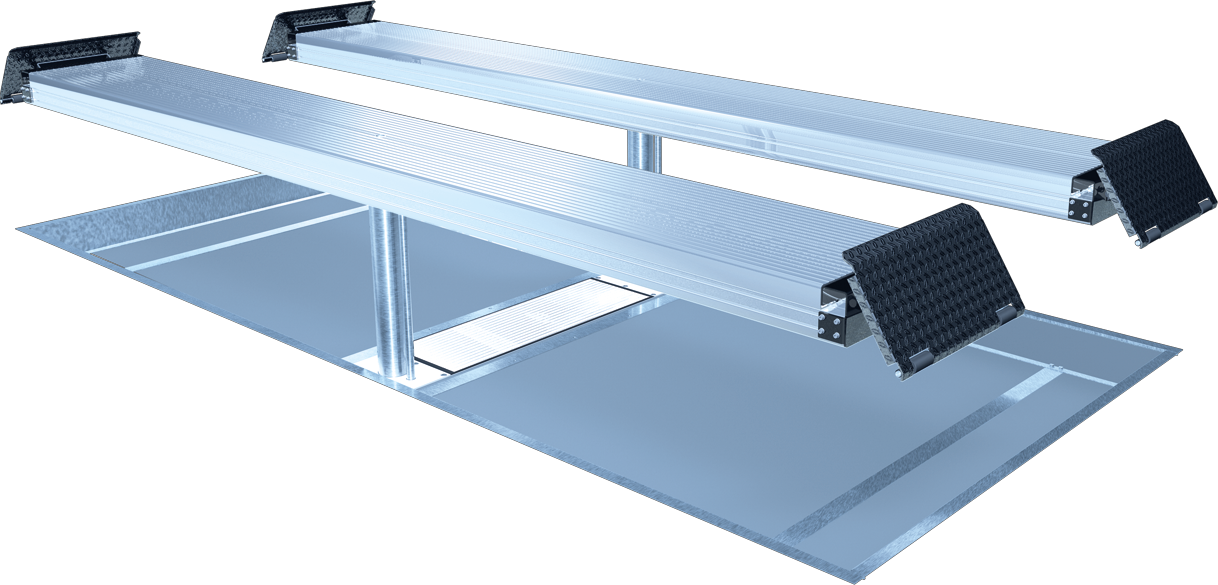

Surface Mounted

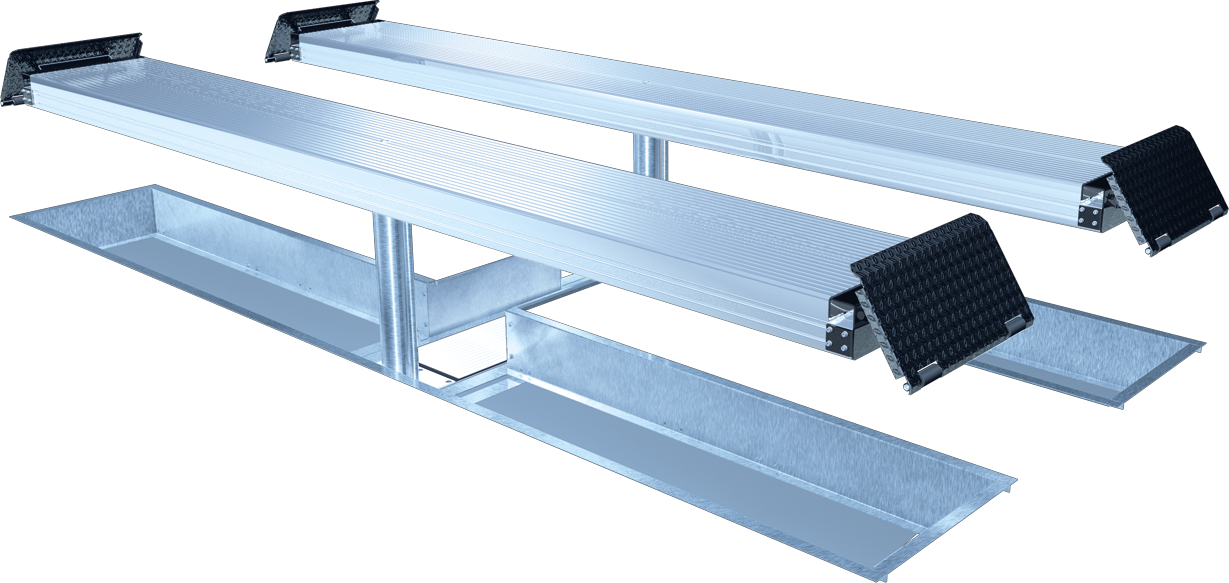

Flush Mounted H-Frame

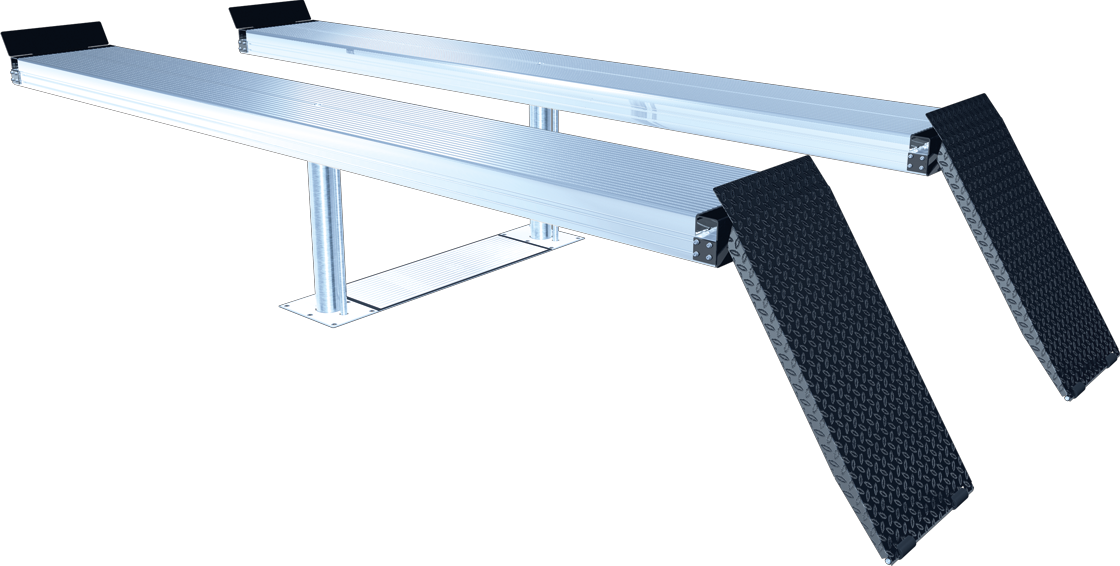

Flush Mounted Rectangle Frame
