The AluTrack 4.40 is a heavy-duty in-ground, four-piston hydraulic platform lift designed for demanding workshop applications such as wheel alignment and general servicing of passenger and light commercial vehicles. With a lifting capacity of up to 4000kg, it features a robust aluminium platform system with a length of approximately 4800mm, providing a stable and precise working surface. Its multi-cylinder design ensures excellent load distribution and smooth operation, delivering an effective lifting height of around 2.0 metres in approximately 35 seconds.
Built with a layered construction combining aluminium and steel components, and available with optional accessories such as turntables, axle lifters, and galvanised installation cassettes, the AluTrack 4.40 offers durability, flexibility, and reliable performance in high-demand workshop environments.
| Technical Data | |
| Platform Capacity: | 4000kg |
| Piston Distance: | 1550mm |
| Lifting Height: | 2008mm |
| Platform Length: | 4800mm |
| Platform Height: | 180mm |
| Installation Depth: | 2443mm |
| Motor Output: | 2 x 3,0kW |
| Power Connection: | 400/16 V/A |
| Cable Length To Control Box: | 11m |
| Lifting/Lowering Time: | ≈ 35 sec |
| Vehicle Type: |    |
| Download Surface Mounted Version Brochure | |
| Download Flush Mounted H-Frame Version Brochure | |
| Download Flush Mounted Rectangle Version Brochure | |

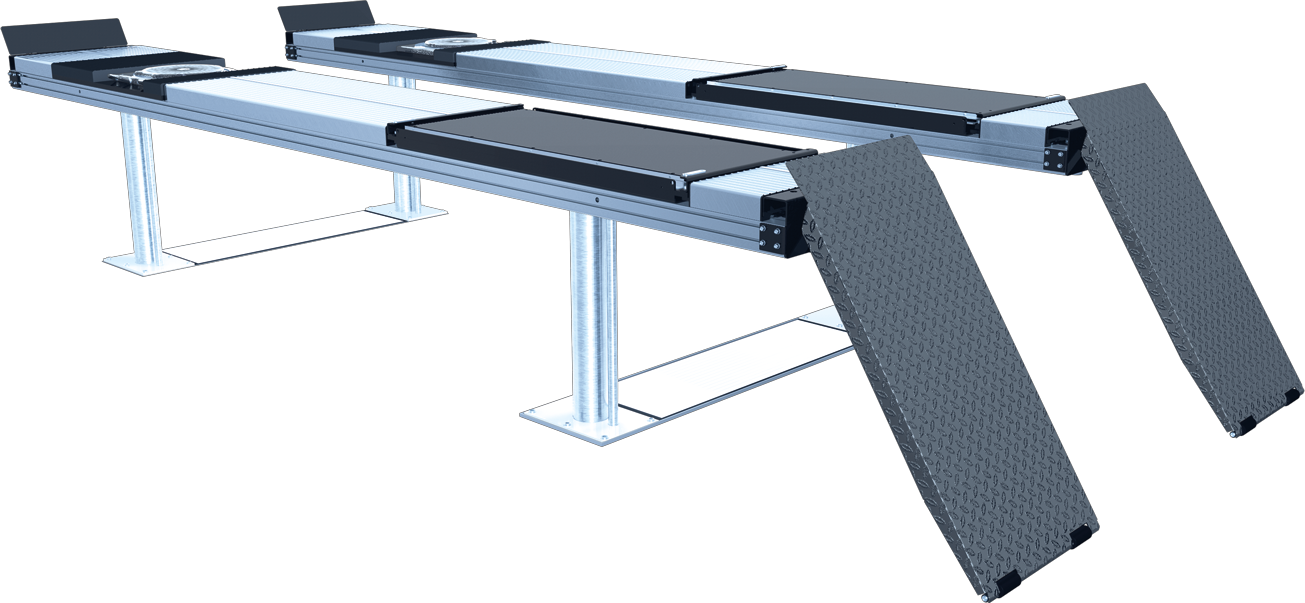

Surface Mounted

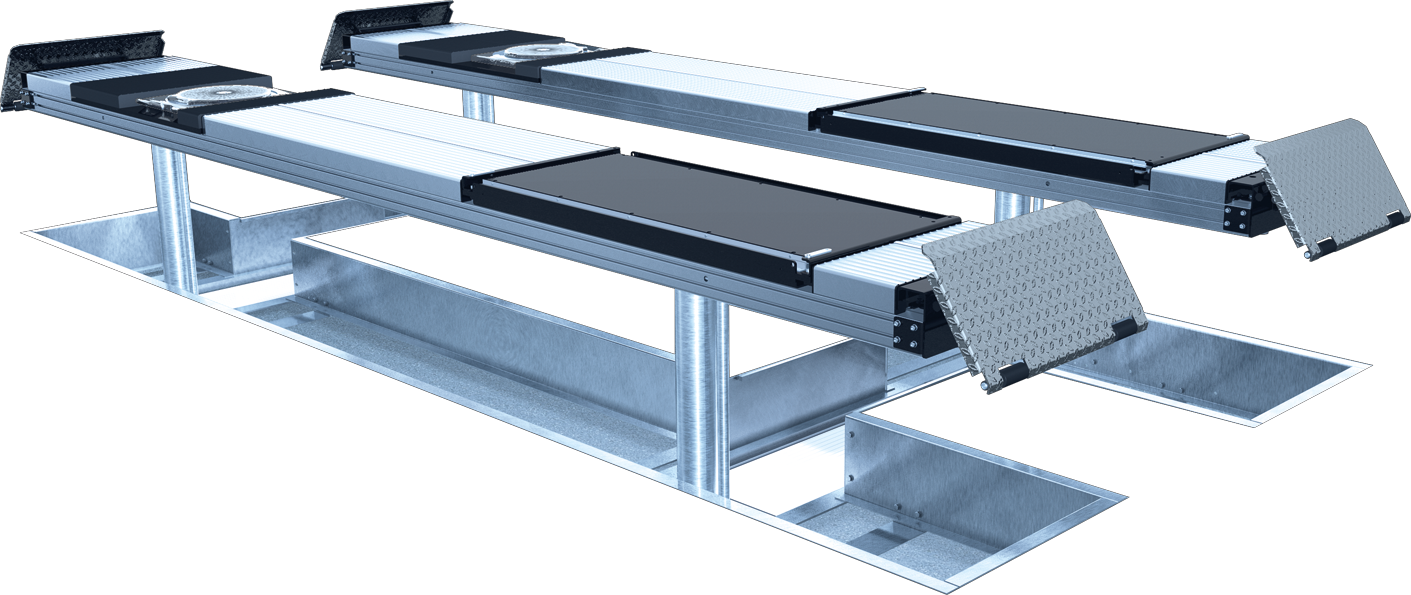

Flush Mounted H-Frame

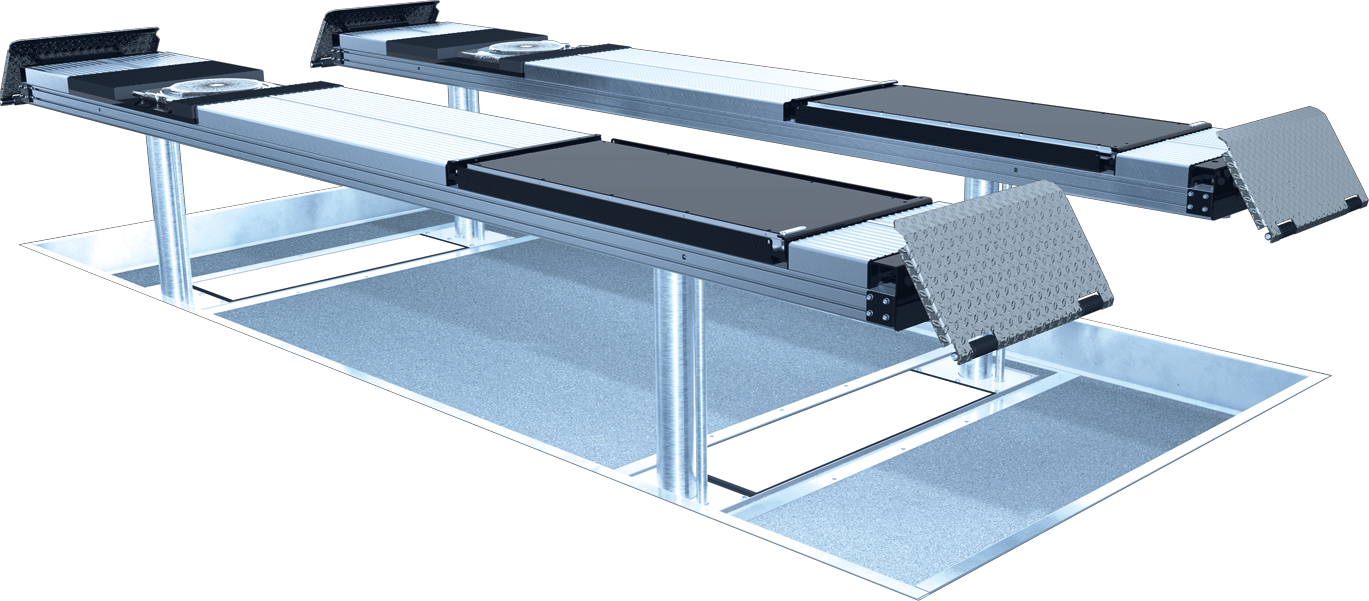

Flush Mounted Rectangle Frame
