The Alu Track 2.35 Duplo Uni Plus delivers a powerful blend of precision engineering and practical versatility, making it an exceptional solution for modern automotive workshops. With a robust 3500kg lifting capacity, generous 4400mm platform length, and rapid ≈35‑second lifting/lowering time, this surface‑mounted system is built for efficiency and reliability. Its low 180mm platform height, 60 mm wheel‑free drive‑over height, and flush‑mount accessory options ensure seamless integration into a wide range of service environments.
Supported by a comprehensive selection of accessories—including sliding plates, LED illumination, axle lifters, and multiple rubber pad configurations—the Alu Track 2.35 Duplo Uni Plus stands out as a flexible, high‑performance lift designed to meet demanding professional standards.
| Technical Data | |
| Platform Capacity: | 3500kg |
| Wheel Free Lift Capacity: | 3500kg |
| Piston Distance: | 1500mm |
| Platform Height: | 2008mm |
| Wheel Free Lift: | 1982mm |
| Platform Length: | 4400mm |
| Platform Height: | 180mm |
| Piston Diameter: | 123mm |
| Installation Depth: | 2443mm |
| Motor Output: | 3,0kW |
| Power Connection: | 400/16 V/A |
| Cable Length To Control Box: | 11m |
| Lifting/Lowering Time: | ≈ 35 sec |
| Vehicle Type: |   |
| Download Surface Mounted Version Brochure | |
| Download Flush Mounted H-Frame Version Brochure | |
| Download Flush Mounted Rectangle Version Brochure | |

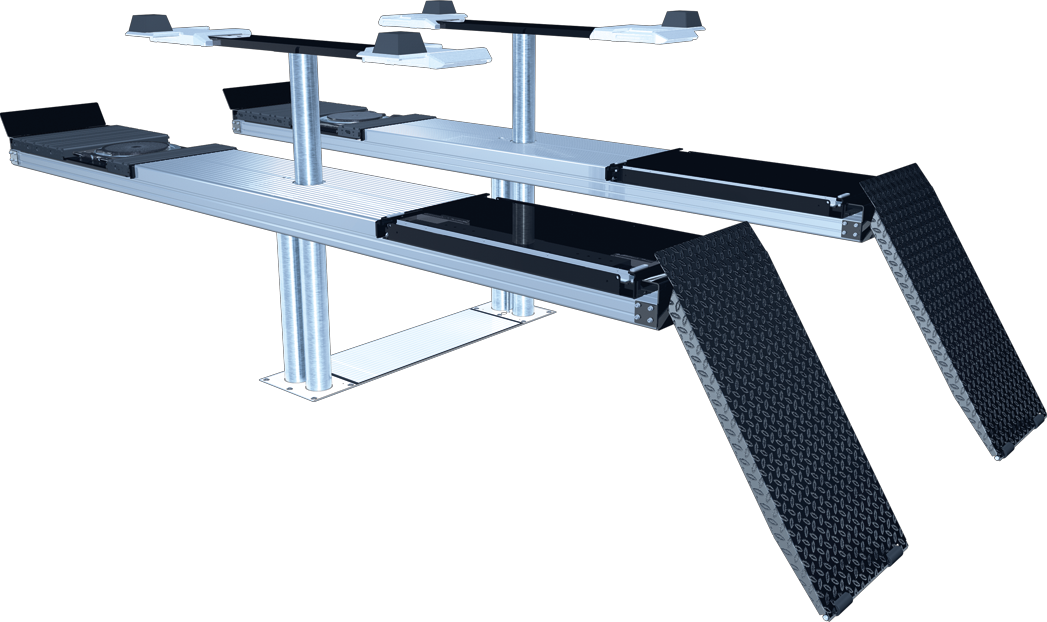

Surface Mounted

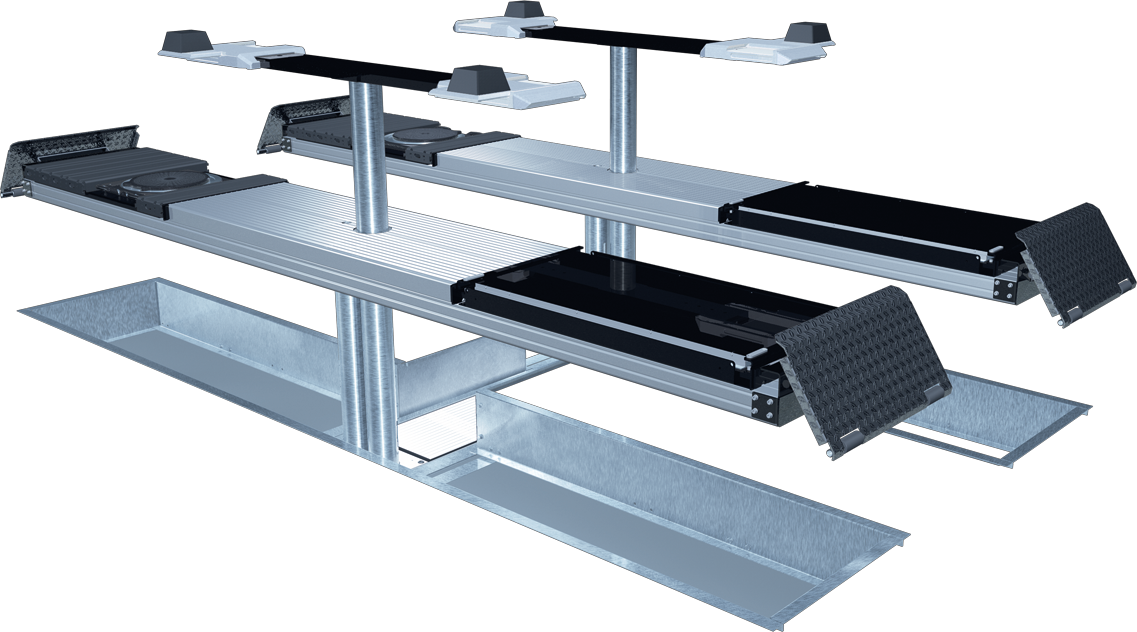

Flush Mounted H-Frame

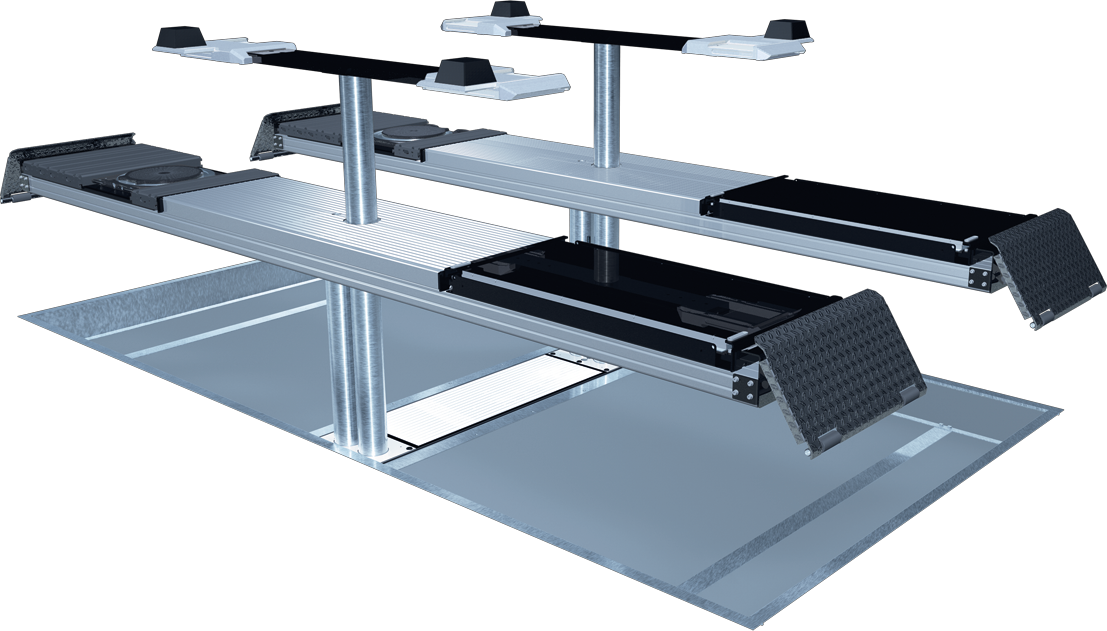

Flush Mounted Rectangle Frame
