The Duplex 4.55 is a heavy-duty in-ground, two-piston hydraulic vehicle lift engineered for high-capacity workshop applications. With a lifting capacity of up to 5500kg and an extended piston distance of 2530mm, it provides exceptional stability and support for larger vehicles such as vans and light commercial models. The lift features three telescopic, adjustable swivel arms for flexible and precise vehicle positioning, along with a robust surround frame design for added durability.
Offering an effective lifting height of just over 2070mm and a drive-over height of approximately 120mm, it ensures excellent accessibility and working clearance. Powered by a reliable 3.0kW motor, the system delivers smooth lifting and lowering cycles in around 45 seconds and is supplied pre-assembled in an installation cassette for efficient setup and long-term performance in demanding workshop environments.
| Technical Data | |
| Capacity: | 5500kg |
| Piston Distance: | 2530mm |
| Lifting Height: | 2074mm |
| Drive Over Height: | 120mm |
| Clearance: | 2370mm |
| Piston Diameter: | 123mm |
| Installation Depth: | 2408mm |
| Motor Output: | 3,0kW |
| Power Connection: | 400/16 V/A |
| Cable Length To Control Box: | 11m |
| Lifting/Lowering Time: | ≈ 35 sec |
| Vehicle Type: |
|
| Download Surface Mounted Version Brochure | |
| Download Flush Mounted Version Brochure | |

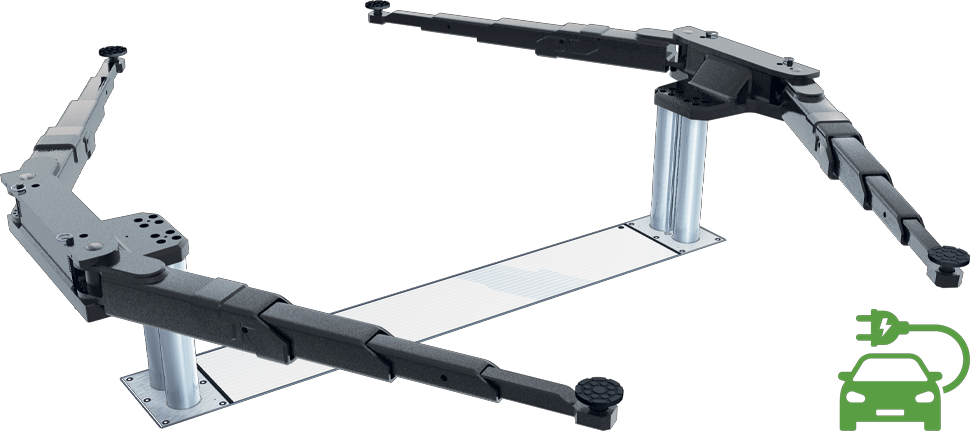

Surface Mounted

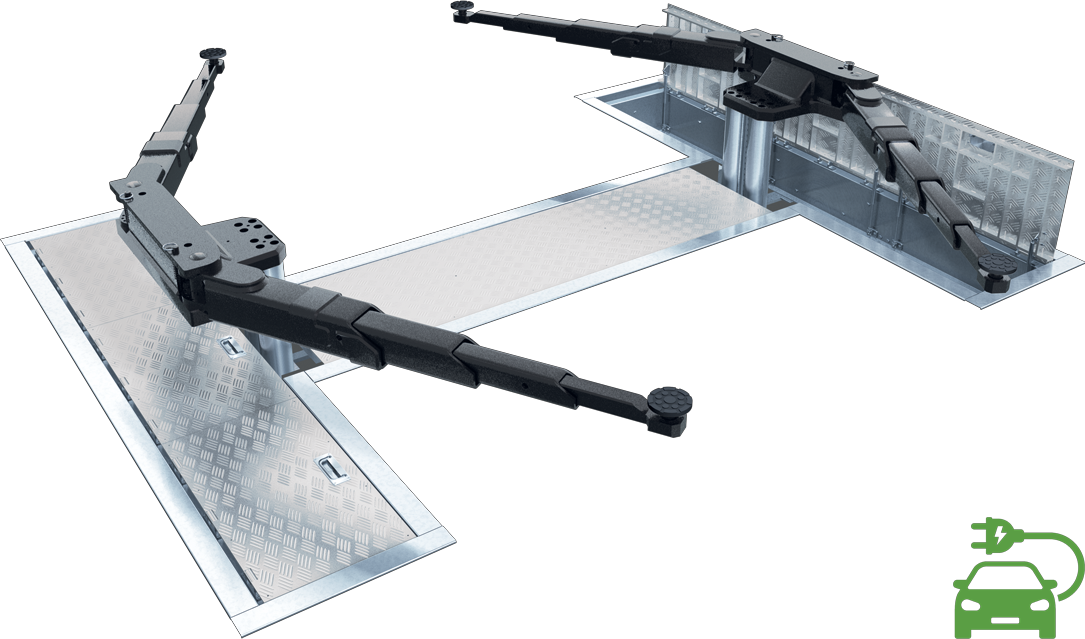

Flush Mounted
